✓The biggest feature of this machine is full computer control, easy operation, and stable quality.

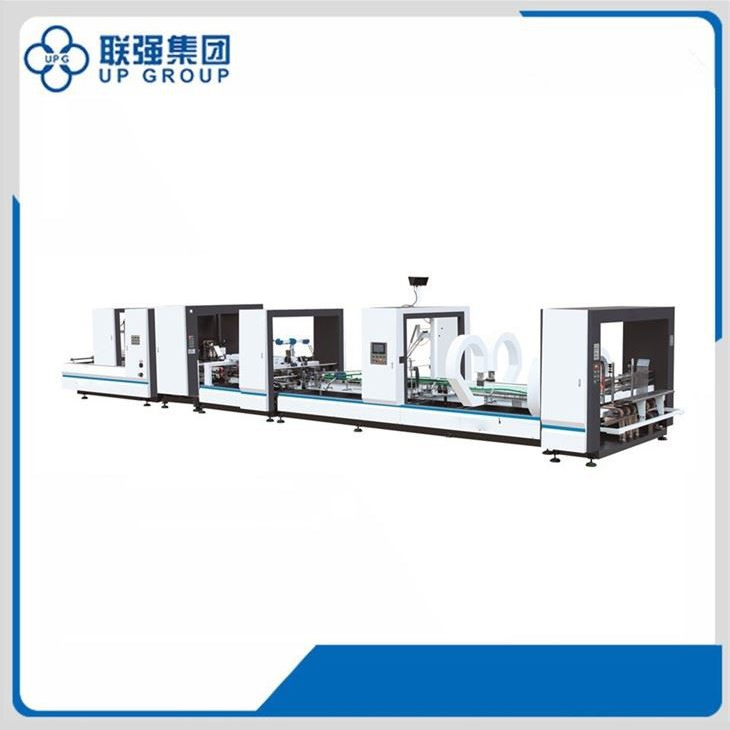

✓This machine is a folder gluer and stitching machine that can paste the box, stitch the box, or both.
✓Order changing can be set within 3-5 minutes with an order memory function.
✓Achieves one-key conversion between pasting and stitching modes.
✓Suitable for three-layer, five-layer, single piece board, and A, B, C, AB corrugated board.
✓Equipped with a side flapping device for neat and smooth paper feeding.
✓Supports stitching for bottles covered boxes.
✓Screw distance range: Min. 20mm, Max. 500mm.
✓Maximum stitching speed of the head: 1050 nails/min. Top speed is approximately 110pcs/min (with 3 nails).
✓Automatically completes folding, rectifying, stitching, pasting, counting, and stacking output.
✓Adjustable single and double screws.

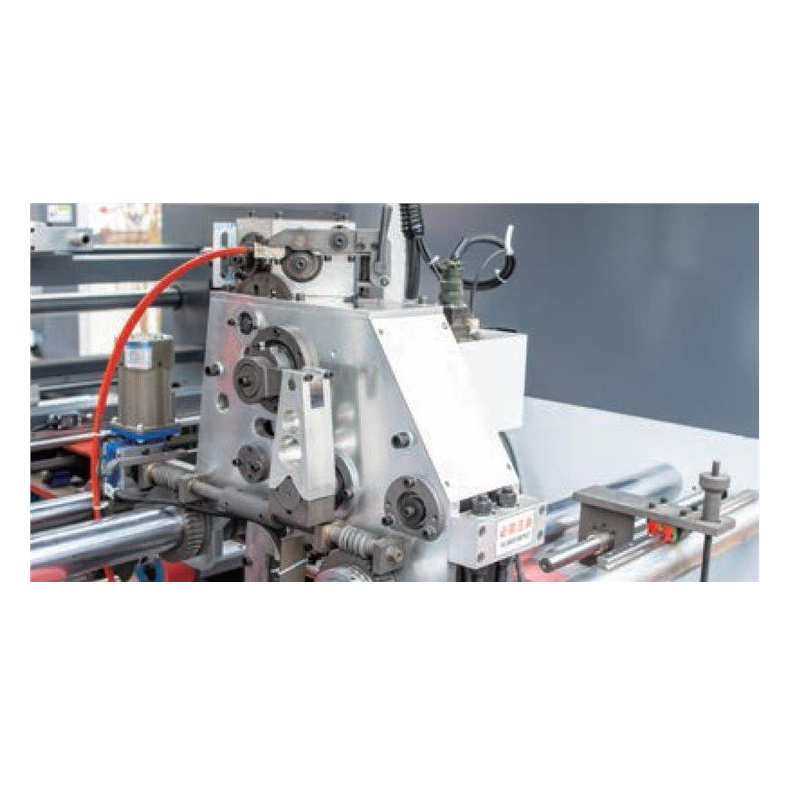

✓Swing type stitch head offers low power consumption, faster speed, and better stability.

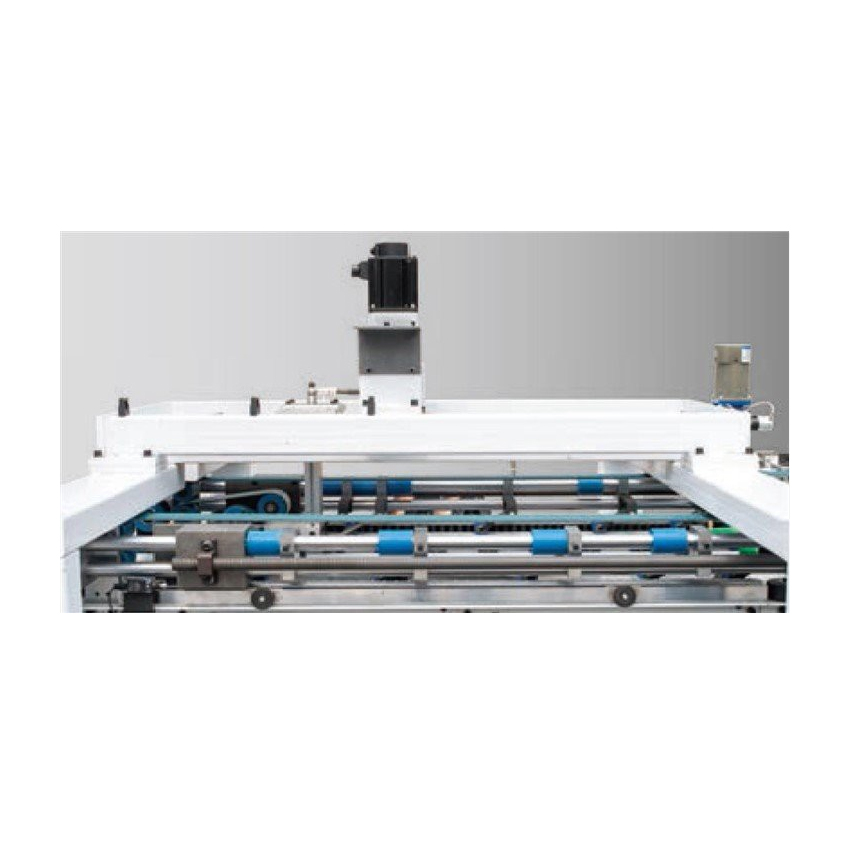

✓Paper correction device eliminates secondary compensation and "scissors mouth" issues.
✓Automatic stitching pressure adjustment based on cardboard thickness.
✓Automatic wire feeding machine with wire break and run-out detection.
●Wide range of products to suit every budget and requirement.
●Error-free high-quality service through strict management procedures.
●Customized solutions for unique equipment needs.
●Flexible payment options and delivery methods for a seamless experience.
●Advanced equipment and high-quality talent driving product development.
●Commitment to the highest manufacturing standards and sincere communication.
Frequently Asked Questions
What functions can this machine perform simultaneously?
This is a versatile folder gluer and stitching machine. It can paste the box, stitch the box, or perform a combination where it pastes the box first and then stitches it.
How fast can the machine change orders?
Order changing is highly efficient and can be completed within 3 to 5 minutes, supported by an integrated order memory function for mass production.
What types of corrugated boards are compatible?
The machine is suitable for three-layer and five-layer boards, single pieces, and A, B, C, and AB corrugated board stitching.
What is the maximum stitching speed of the machine?
The stitching head can reach a maximum speed of 1050 nails per minute. For a standard box with three nails, the production speed is about 110 pieces per minute.
Does the machine handle folding and counting automatically?
Yes, it automatically completes paper folding, rectifying, stitching, pasting, counting, and stacking output tasks.
How does the machine ensure stitching quality?
It utilizes a swing-type stitch head for stability and a paper correction device to eliminate "scissors mouth" issues, ensuring the stitch box is perfect.
UPG International

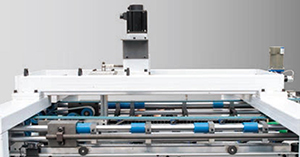

Paper correction device

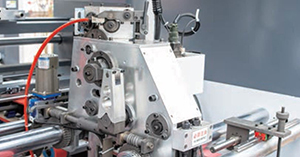

Swing type stitch head
