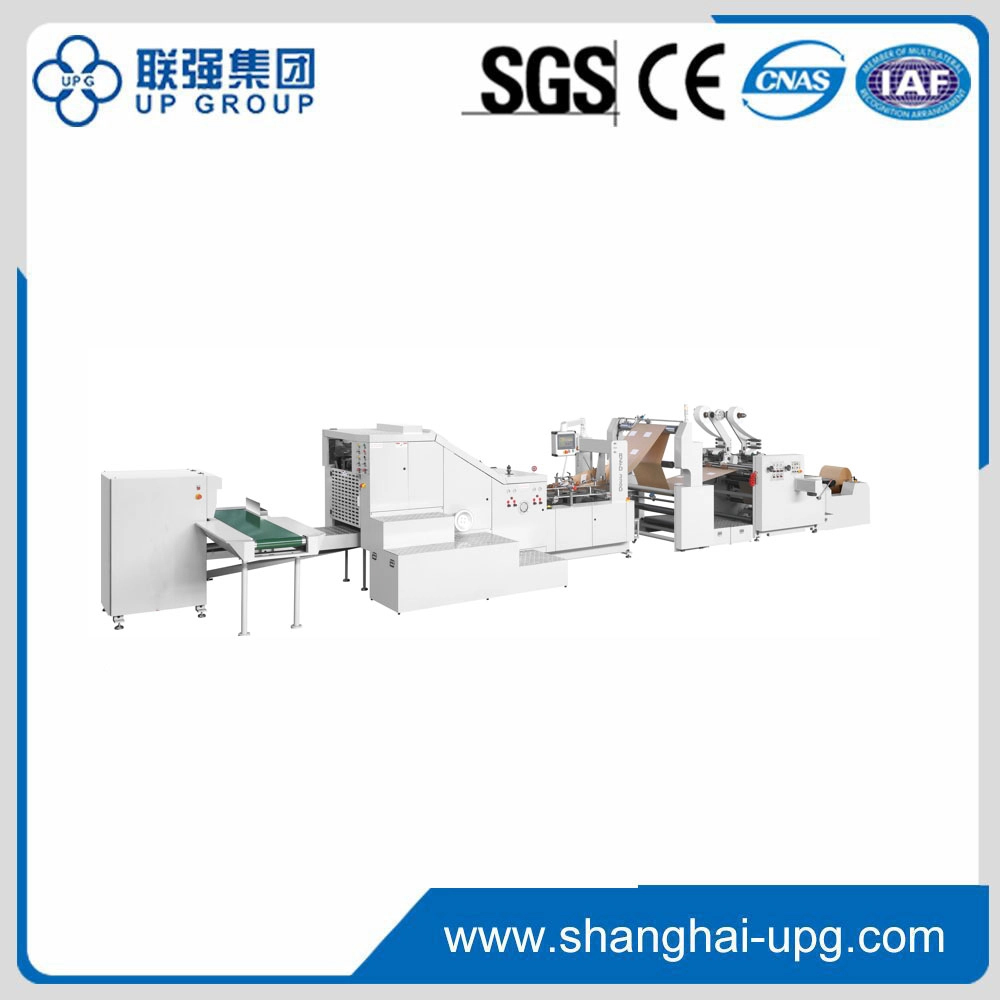

Famous Automatic Square Bottom Paper Bag Machine for Sale Supplier, Service

Product Description

This machine is used for roll raw color paper or printing roll paper such as kraft paper, food paper and other paper rolls by the machine once complete the paper bag process. By automatic paper roll tension, coil correction, Paiqi bag positioning on the glue patch, center on glue, printing bag tracking. Raw material into into a barrel, Paiqi bag buckle hand hole, fixed long cut, bottom indentation, bottom folding bottom, bottom on glue. The bottom of the bag is formed, the finished bag is finishing once completed. Native operation is more convenient, more efficient, more stable, is the production of a variety of different paper bags, leisure food bags, bread bags, dry fruit bags and so on environmentally automatic fully automatic paich bag paper bag machine equipment.
📊 Technical Parameter
ModelLQ-R330D
Cutting length270-530mm
Bag width120-330mm
Bottom width60-180mm
Paper thickness80-150g/㎡
Machine Speed30-220pcs/min
Paper bag speed30-200pcs/min
Patch Bag width190-330mm
Patch Handle length75/85mm
Paige bag paper thickness80-150g/㎡
Paige bag film thickness40-70µm
Paige bag roll width130mm
Paige bag roll straight500mm
Patch Bag speed30-130pcs/min
Paper roll width450-1050mm
Roll paper diameterΦ1200mm
Machine power3phase, 4 wire, 380V 40.58kw
Machine weight11800kg
Machine size16000x2200x2600mm
⚙️ Main Features & Components
Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
Adopt Germany original LENZE PC control, integrated with optical fiber to ensure stable and high speed running.
Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction for accurate printing bag tracking.
Patch bag function adopts a complete set of German original LENZE servo motor, working with German original Rexroth motion controller (PC).
Automatic hole-punching system powered by Germany original LENZE servo motor.
Raw material loading adopts hydraulic auto-lifting structure; Unwind unit features auto tension control.
Raw material unwinding EPC adopts Italy SELECTRA, significantly reducing material alignment time.
❓ Frequently Asked Questions
What types of paper can this machine process?
The machine is designed to handle various paper rolls, including kraft paper, raw color paper, printing roll paper, and food-grade paper.
What is the production capacity of the LQ-R330D?
The machine can reach speeds of 30 to 220 pieces per minute, depending on the bag specifications and material used.
How does the machine ensure printing accuracy?
It utilizes the German original SICK photoelectric eye correction system and LENZE servo motors to track and position printing bags with high precision.
Is the operation interface user-friendly?
Yes, it features a France SCHNEIDER touch screen human-computer interface, making it easy for operators to control and monitor the production process.
What kind of control system is used for the patch bag function?
The patch bag function is controlled by a complete set of German LENZE servo motors integrated with a Rexroth motion controller via optical fiber for maximum stability.
Does the machine support heavy paper rolls?
Yes, the machine is equipped with a hydraulic auto-lifting structure for raw material loading, capable of handling roll diameters up to 1200mm.
