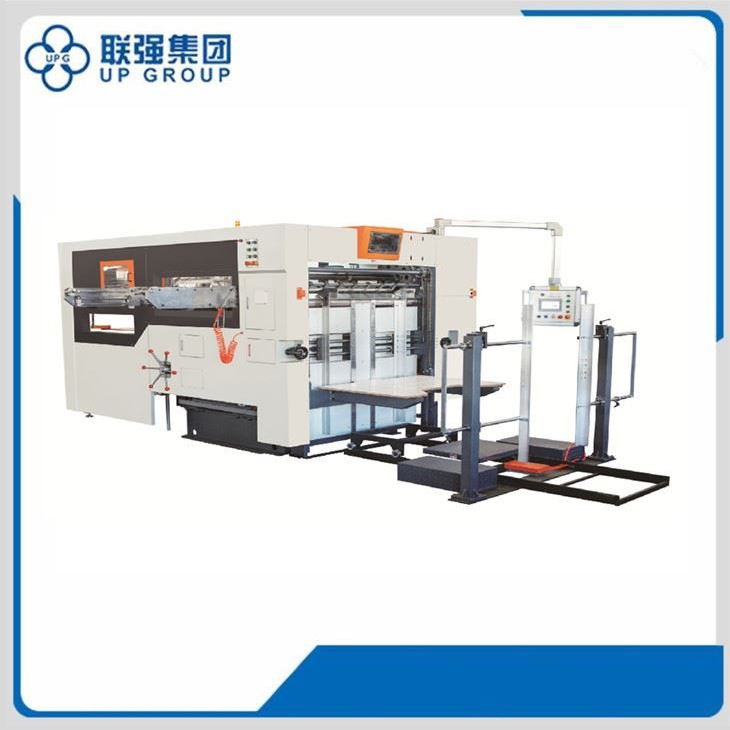

Custom Semi automatic die cutting machine Manufacturers, Exporter

LQMB-P

Send Inquiry

Product Description

Technical Specifications

Model	LQMB-1300P	LQMB-1450
Max. Paper Size	1320x960mm	1500x1110mm
Min. Paper Size	450x420mm	550x450mm
Max. Diecutting Size	1320x958mm	1430x1110mm
Inner Size of Chase	1320x976mm	1500x1124mm
Paper Thickness	≤8mm Corrugated board	≤8mm Corrugated board
Gripper Margin	9-17mm (Standard 13mm)	9-17mm (Standard 13mm)
Max. Working Pressure	300ton	300ton
Max. Mechanical Speed	6000 sheets/h	5500 sheets/h
Total Power	13.5kw	13.5kw
Compressed Air Requirement	0.55-0.7MPa / ≥0.6m³/min
Net Weight	16000Kg	16500Kg
Overall Dimensions (LxWxH)	5643x4450x2500mm	5643x4500x2500mm

Machine Description

This machine is a special equipment for die-cutting of high-end color corrugated boxes, which realizes automation from paper feeding, die-cutting and paper delivery. The unique lower sucker structure can realize continuous non-stop paper feeding and effectively avoid the scratch problem of the color boxes.
It adopts advanced mechanisms such as high-precision intermittent indexing mechanism, Italian pneumatic clutch, manual pressure regulation, and pneumatic chase locking device. The rigorous and precise manufacturing process guarantees accurate, efficient and stable operation of the whole machine.
Manual paper feeding makes the machine work stably, and it is suitable for a wide range of paper; the structure is simple and the failure rate is lower; the pre-piling unit allows the paper to be stacked in advance, thus increase the efficiency.
The machine body, bottom platform, moving platform and the upper platform are made of high-strength nodular cast iron to ensure the machine no deformation even working at a high speed. They are processed by a large five-sided CNC at one time to ensure the accuracy and durability.
This machine adopts precise worm gear and crankshaft connecting rod mechanism to ensure the stable transmission. All of them are made of high-grade alloy materials, processed by a large machining tools, which ensure the machine with stable operation, high die-cutting pressure, and high-point pressure holding.
The high-resolution touch screen is used for human-computer interaction. The PLC program controls the operation of the whole machine and the trouble monitoring system. The photoelectric sensor and the LCD screen are used throughout the work, which is convenient for the operator to monitor and eliminate hidden dangers in time.
The gripper bar is made of special super-hard aluminum alloy materials, with anodized surface, strong rigidity, light weight, and small inertia. It can carry out precise die-cutting and precise control even the machine running at high speed. The chains are made in German to ensure accuracy.
Adopt high-quality pneumatic clutch, long life, low noise and stable braking. The clutch is fast, with large transmission force, more stable and durable.
Adopts the delivery table for paper collecting, the paper pile is automatically lowered, and when the paper is full it will automatically alarms and speeds down. The automatic paper arranging device runs smoothly with simple adjustment and neat paper delivery. Equipped with an anti-return photoelectric detection switch to prevent the paper stacking table from being over height and paper rolling.

Why Choose Us?

We offer a range of flatbed diecutting and stripping machines that deliver both precision and accuracy.
Our products have been exported to many countries and regions, and enjoy high international praise through professionalization and internationalization.
Our team is committed to providing exceptional customer service, ensuring that our customers receive the support they need at every stage of the process.
Customer need is our primary focus for Semi Automatic Die Cutting Machines.
Our products have earned a reputation for being reliable, cost-effective, and easy to operate, making them a top choice for many businesses.
We pursue the entrepreneurial spirit of integrity, progress, high activity and intelligence.
Our products are backed by a team of experienced professionals who are dedicated to ensuring the best possible service and support.
We attach great importance to the feelings of consumers, listening and exploring customer evaluations to drive the improvement of our industrial processes.
With years of experience and a passion for innovation, we are committed to providing customers with the best flatbed diecutting and stripping solutions available.
We continue to pursue high-quality products and services using our own professional technological innovation advantages.

FAQ

1. What is the maximum paper thickness this machine can handle?

The machine is designed to handle corrugated board with a thickness of up to 8mm.

2. How does the machine prevent scratches on color boxes?

It features a unique lower sucker structure that allows for continuous non-stop paper feeding, effectively avoiding scratch issues on high-end color boxes.

3. What material is used for the machine's main body?

The machine body and platforms are constructed from high-strength nodular cast iron, processed by a five-sided CNC to ensure no deformation and long-term accuracy.

4. How is the die-cutting precision maintained at high speeds?

Precision is maintained using special super-hard aluminum alloy gripper bars, German-made chains, and a high-precision intermittent indexing mechanism.

5. Is the operation system user-friendly?

Yes, it uses a high-resolution touch screen for human-computer interaction and a PLC program to monitor the whole machine's operation and trouble systems.

6. What happens when the paper collection table is full?

The delivery table automatically lowers the paper pile and triggers an alarm while slowing down once the paper is full, ensuring neat and safe delivery.
