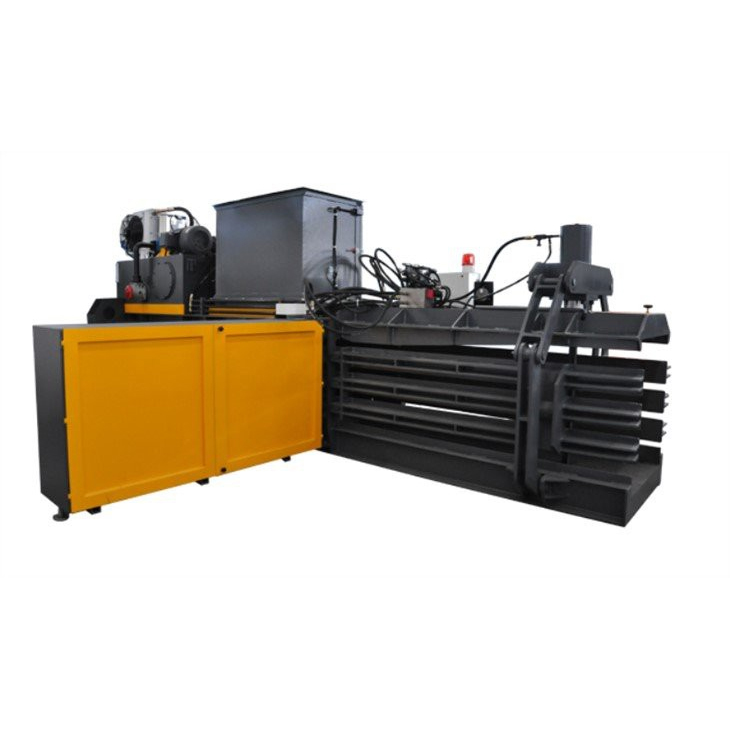

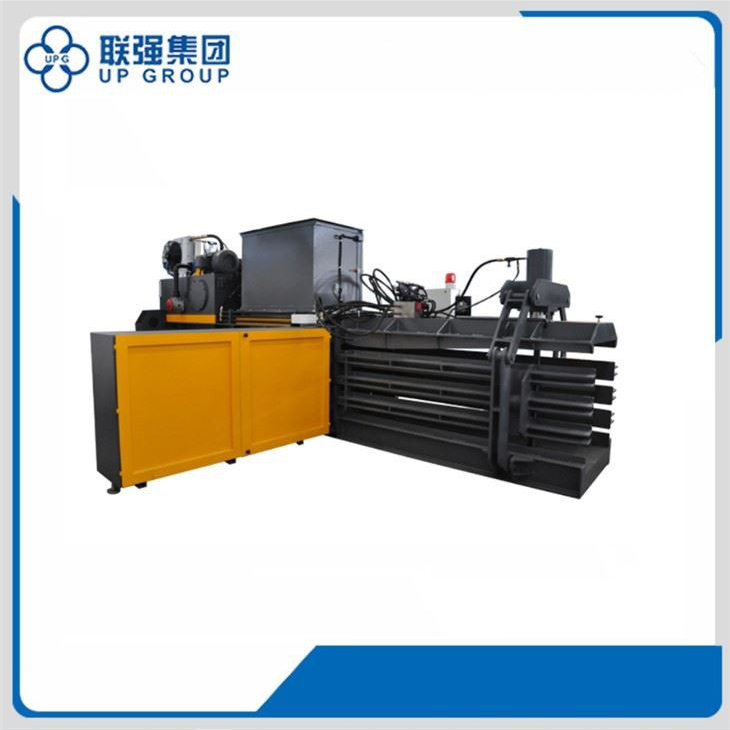

Machine Photo
Specification
| Model |
LQJPW30QT |
LQJPW40QT |
LQJPW60QT |
| Compression Force |
30ton |
40ton |
60ton |
| Bale Size (WxHxL) |
500x500x (300-1000) mm |
720x720x (300-1500) mm |
750x850x (300-1600) mm |
| Feed Opening Size (LxW) |
950x950mm |
1150x720mm |
1350x750mm |
| Bale Line |
3 |
4 |
4 |
| Density |
250-300kg/m³ |
350-450kg/m³ |
400-500kg/m³ |
| Capacity |
1-1.5ton/hour |
1.5-2.5ton/hour |
3-4ton/hour |
| Power |
11/15Kw/Hp |
15/20Kw/Hp |
18.5/25Kw/Hp |
| Machine Size (LxWxH) |
5000x2830x1800 |
6500x3190x2100 |
6650x3300x2200 |
| Machine Weight |
4ton |
6.5ton |
8ton |
Machine Description
Horizontal full automatic model automatic wire bundling widely used in packaging plants, carton factories, printing plants, garbage sorting stations, professional recycling stations and other places; suitable for waste paper, cardboard, plastics, fabrics, fibers, household garbage etc. materials can be used with assembly line, air pipe feeding and other methods.
-
✓
It adopts three-sided reverse-pulling shrinking type which is automatically tightened and loosened by the oil cylinder stable and powerful.
-
✓
PLC program touch screen control, simple operation with feeding detection and automatic compression realizing unmanned operation.
-
✓
Unique automatic bundling device, fast speed, simple structure, stable action, low failure rate and easy to clean and maintain.
-
✓
Equipped with accelerated oil pump and booster oil pump saving electricity, energy consumption and cost.
-
✓
Automatic fault diagnosis and automatic display improves detection efficiency, freely sets bale length and accurately records the bale numbers.
-
✓
The unique concave multi-point cutter design improves the cutting efficiency and prolongs the service life of the cutter.
-
✓
Three-phase voltage safety interlock, simple and durable, it can be equipped with air pipe and conveyor feeding material with higher efficiency.
Why Choose Us?
-
★
Our Automatic Baler products are optimized for easy maintenance and long service life.
-
★
The fulfillment of social responsibility by enterprises has become an important path to achieve sustainable development of the global economy.
-
★
We strive to achieve 100% customer satisfaction with our products and services.
-
★
As a leading manufacturer of Automatic Baler equipment, we have a wealth of experience.
-
★
We have improved the technical content of our products to make our products more intelligent, humanized and personalized.
-
★
We take pride in delivering our Automatic Baler products on time and to our customers’ specifications.
-
★
Our Automatic Baler products are highly customizable to suit individual customer requirements.
-
★
We test every performance of our products with various environmental conditions for reliable and stable performance.
Frequently Asked Questions
What materials can this automatic baler process?
This machine is versatile and suitable for waste paper, cardboard, plastics, fabrics, fibers, and household garbage.
How does the PLC control system benefit operation?
The PLC touch screen control simplifies operation with automatic feeding detection and compression, allowing for efficient unmanned operation.
Can the bale length be adjusted?
Yes, the system allows you to freely set the bale length and accurately record the number of bales processed.
Does the machine include safety features?
Absolutely. It features a three-phase voltage safety interlock and an automatic fault diagnosis system with a display for high-efficiency detection.
Is the bundling process fast and reliable?
Yes, the unique automatic bundling device is designed for fast speed, simple action, and a low failure rate, making it easy to maintain.
How is the energy efficiency of this baler?
The machine is equipped with both accelerated and booster oil pumps, which significantly save electricity and reduce energy consumption costs.
