Properties and Uses

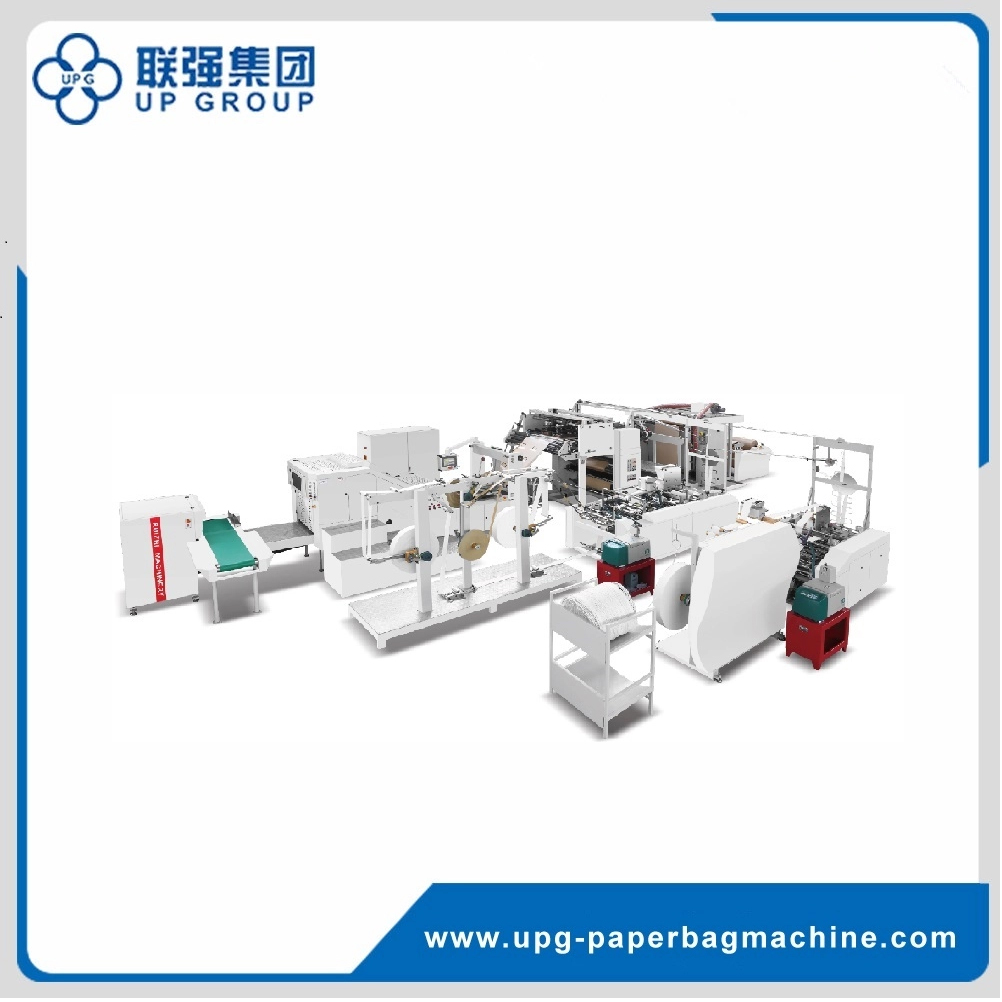

Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making.
The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
Main Features
01
Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
02
Adopt Germany original LENZE PC control, integrated with optical fiber to ensure stable and high speed running.
03
Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.
04
Raw material loading adopts hydraulic auto-lifting structure; Unwind unit adopts auto tension control.
05
Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.
Technical Parameter
| Cutting length | 270-530mm |
| Cutting length | 270-430mm |
| Bag width | 220-450mm |
| Bag width | 240-450mm |
| Bottom width | 90-180mm |
| Paper Thickness | 80-150g/㎡ |
| Paper roll width | 590-1300mm |
| Paper roll width | 670-1300mm |
| Roll paper diameter | Φ1300mm |
| Paper core | Φ76mm |
| Patch length | 190mm |
| Patch width | 50mm |
| Handle length | 340mm |
| Handle distance | 95mm |
| Rope diameter | 3-5mm |
| Patch paper roll width | 100mm |
| Patch paper roll diameter | Φ1200mm |
| Patch paper thickness | 100-135g/㎡ |
| Machine Speed | 30-180bags/min |
| Production speed (without handles) | 30-150bags/min |
| Production speed (with handles) | 30-130bags/min |
| Flat rope distance | 84mm |
| Flat Rope Width | 12mm |
| Flat rope height | 100mm |
| Patch Width | 40-50mm |
| Patch Length | 190mm |
| Flat Rope Length | 352mm |
| Patch Feeding Width | 80-100mm |
| Material thickness | 120g/㎡ |
| Handle roll diameter | 1200mm |
| Paper Bag With Flat rope speed | 30-90pcs/min |

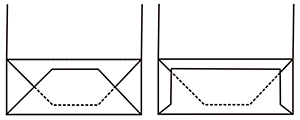

| Bottom folding type |  |
| Cutting knife | Sawtooth cutting |
| Machine weight | 24T |
| Machine size | 18000x8000x2800mm |
| Power Supply | 380V 3Phase 58KW |
Frequently Asked Questions (FAQ)
What types of handles can the LQ-R450T/F machine produce?
The machine is specifically designed to produce square bottom paper bags with twisted handles inline, managing everything from handle making to final bag delivery.
Which industries is this paper bag machine suitable for?
It is ideal for mass production of shopping bags used in the food and clothing industries.
What control systems are integrated into the machine?
The machine utilizes high-end components including a France SCHNEIDER touch screen, Germany original LENZE PC control, and LENZE servo motors for precision.
What is the production speed of the LQ-R450T/F?
The general machine speed ranges from 30-180 bags/min. Specifically, it produces 30-130 bags/min with handles and 30-150 bags/min without handles.
What paper thickness can be used with this machine?
The machine supports paper thickness between 80-150g/㎡ for the main bag and 100-135g/㎡ for the patch paper.
How does the machine handle raw material loading?
It features a hydraulic auto-lifting structure for loading raw materials and an unwind unit with automatic tension control for smooth operation.
