Technical Specification
| Model |
LQMX1300P |
LQMX1450P |
| Max. Paper Size |
1320x960mm |
1450x1110mm |
| Min. Paper Size |
450x420mm |
550x450mm |
| Max. Die-Cutting Size |
1300x950mm |
1430x1100mm |
| Inner Size of Chase |
1320x946mm |
1512x1124mm |
| Paper Thickness |
Corrugated board ≤ 8mm |
Corrugated board ≤ 8mm |
| Gripper Margin |
9-17mm, standard 13mm |
9-17mm, standard 13mm |
| Max. Working Pressure |
300ton |
300ton |
| Max. Mechanical Speed |
6000sheets/h |
6000sheets/h |
| Total Power |
30kw |
30.5kw |
| Air Source Pressure/Flow |
0.55-0.7MPa / ≥0.6m³/min |
| Net Weight |
23ton |
25ton |
| Dimensions (LxWxH) |
9060x5470x2370mm |
9797x5460x2290mm |

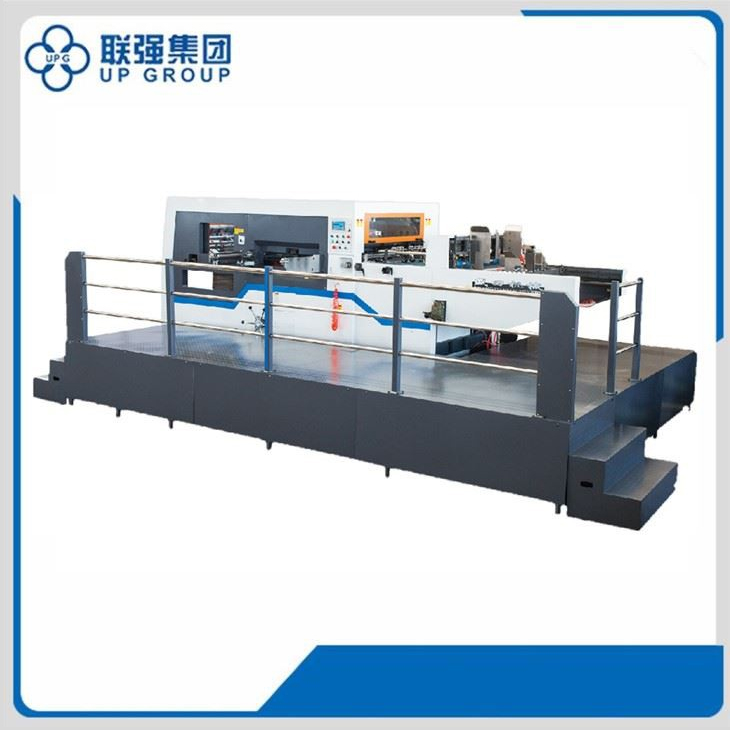

This equipment is specialized for die-cutting of high-end color corrugated boxes, realizing full automation from paper feeding to delivery.
✓
Innovative Feeding: Unique lower sucker structure realizes continuous non-stop feeding, effectively avoiding scratches on color boxes.
✓
Advanced Mechanisms: Features high-precision intermittent indexing, Italian pneumatic clutch, manual pressure regulation, and pneumatic chase locking.
✓
Durable Construction: The machine body and platforms are made of high-strength nodular cast iron, processed by five-sided CNC for zero deformation at high speeds.
✓
Stable Transmission: Utilizes precise worm gear and crankshaft connecting rod mechanisms made of high-grade alloy for stable high-pressure operation.
✓
Smart Control: High-resolution touch screen for human-computer interaction, PLC program control, and full photoelectric monitoring.
✓
Precision Components: Super-hard aluminum alloy gripper bars and German-made chains ensure accuracy even at maximum mechanical speeds.
✓
Automatic Delivery: Automatic lowering delivery table with alarm sensors and anti-return detection for neat, safe stacking.
4
Why Choose Our Solutions?
● Expertise & Customization
We provide everything from simple flatbed die-cutting to complex stripping solutions, tailored to your unique requirements.
● Competitive Excellence
Focusing on coordinated industrial development to ensure our products remain the highest quality and most competitive in the market.
● Innovation Driven
We constantly seek ways to innovate, helping our customers stay ahead of the competition with precision and accuracy.
● Customer Centric
Through years of steady development, we anticipate customer needs and offer flexible financing options to ensure accessibility.
Frequently Asked Questions
Q1: What is the maximum thickness of material this machine can process?
The LQMX series can handle corrugated board with a thickness of up to 8mm.
Q2: How does the machine prevent scratches on high-end color boxes?
The machine utilizes a unique lower sucker structure and a specialized anti-scratch mechanism during paper feeding to protect the surface.
Q3: What is the maximum mechanical speed of these models?
Both the LQMX1300P and LQMX1450P can reach a maximum speed of 6000 sheets per hour.
Q4: Are the key components durable for 24/7 operation?
Yes, the machine body is made of high-strength nodular cast iron and uses German-made chains to ensure durability and precision during high-speed operation.
Q5: What control system is used for monitoring the die-cutting process?
It uses a high-resolution touch screen with a PLC program control system and photoelectric sensors for real-time monitoring and troubleshooting.
Q6: Does the paper delivery system require manual intervention?
No, the delivery table features automatic lowering, automatic alarms when full, and an automatic paper arranging device for neat stacking.
