Specification
| Model |
LQJPA1070T30M |
LQJPA1075T40M |
LQJPA5076T50M |
| Compression Force |
30ton |
40ton |
50ton |
| Bale Size (LxWxH) |
1100x700 x(650-900)mm |
1100x750 x(700-1000)mm |
1500x760 x(700-1000)mm |
| Feed Opening Size (LxH) |
1050x500mm |
1050x500mm |
1450x600mm |
| Capacity |
3-6bales/hour |
3-5bales/hour |
3-5bales/hour |
| Bale Weight |
150-250kg |
200-350kg |
350-500kg |
| Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
| Power |
5.5Kw/7.5Hp |
5.5Kw/7.5Hp |
7.5Kw/10Hp |
| Machine Size (LxWxH) |
1580x1100x3208mm |
1580x1150x3450mm |
2000x1180x3650mm |
| Machine Weight |
1200kg |
1700kg |
2300kg |

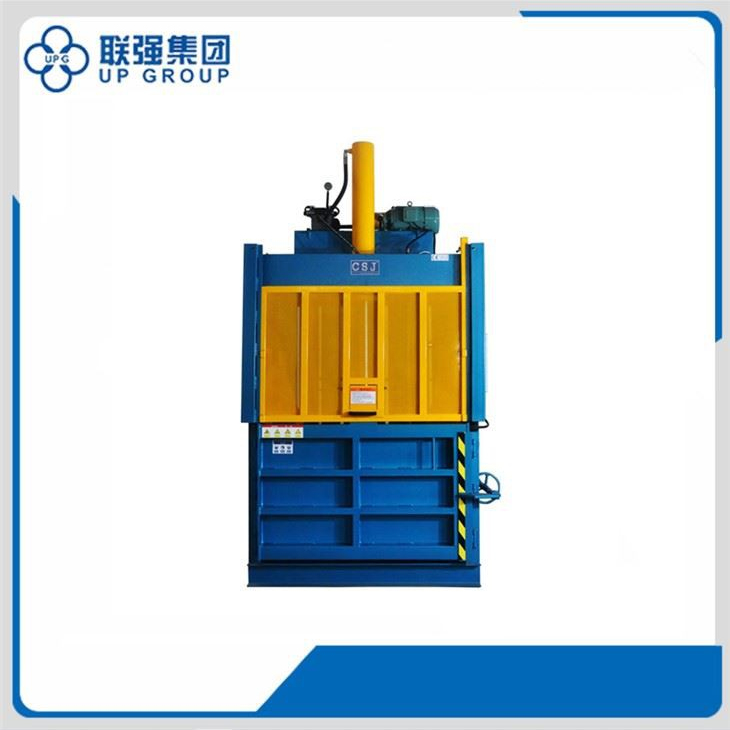

Machine Description
Why Choose Us?
✓
Large scale production capacity of Semi Automatic Baler products to meet diverse business needs.
✓
Guided by scientific development and independent innovation in science and technology.
✓
Designed for user-friendly operation with minimal maintenance requirements.
✓
High-quality spare parts ensuring extended equipment service life.
✓
Durable construction built to withstand the toughest industrial conditions.
✓
Intelligent management team providing professional service and cooperative development.
Application: Suitable for recycling, compression, and baling of waste paper, plastics, cartons, and conventional waste materials. Ideal for logistics, supermarkets, and various industrial enterprises.
Core Technical Features
●
U-shaped Balance Device: Effectively avoids accidents caused by uneven material placement during compression.
●
Movable Door System: Up and down movable feed opening reduces space requirements and facilitates easier feeding.
●
Safety Interlock: Equipped with a comprehensive turn-over system for enhanced operator safety.
●
Anti-rebound Device: The feeding chamber prevents material rebound, significantly saving feeding time.
Frequently Asked Questions
What materials can this vertical baler handle?
This machine is versatile and suitable for waste paper, plastics, cardboard cartons, and other common waste materials found in retail and industrial environments.
How does the safety interlock system work?
The safety interlock ensures the machine only operates when doors are properly secured, and includes a turn-over system to manage the bales safely once compressed.
Can the bale weight be adjusted?
Yes, depending on the model, the bale weight ranges from 150kg to 500kg. The weight varies based on the material type and the height of the bale (which is adjustable).
Is the machine suitable for international use?
Absolutely. It features a space-saving door design and a professional appearance, making it a very popular model for export to various global markets.
What is the advantage of the U-shaped balance device?
The U-shaped device maintains pressure equilibrium. This prevents the pressure plate from tilting, which protects the hydraulic cylinder and prevents accidents caused by uneven loading.
Does the machine require complex installation?
The Semi Automatic Vertical Baler is designed for ease of use. It has a compact footprint and is engineered for straightforward setup and minimal ongoing maintenance.
