● Suitable for producing bags for powder and particles,such as cement,mortar and chemicals; ● Able to produce A-shape cut paper tube; ● The gram weight of paper material need to be between 70-100 g/m2; ●Able to produce paper tubes made from 2-4 layers of paper or 2-3 layers of paper and 1 layer of PP or PE; ● The core mechanisms are controlled by servo system.Easy to change the parameter; ● The paper tubes can be used on the bottomer machine to produce paper bags.

Send Inquiry

Product Description

Technical Parameters

Machine Type	LQ YR2019
Straight cut length (mm)	500-1100
A-shaped edge width (mm)	350-620
M-shaped edge depth (mm)	≤ 80
Cut	Straight
Layers	2-4 layers of paper or 2-3 layers of paper + 1 layer of PP or PE
Max design speed	150 tubes/min
Max paper reel diameter (mm)	Φ 1300
Size of the machine (m)	18.5 x 2.35 x 2.08
Power	23KW

Features

Technological Process

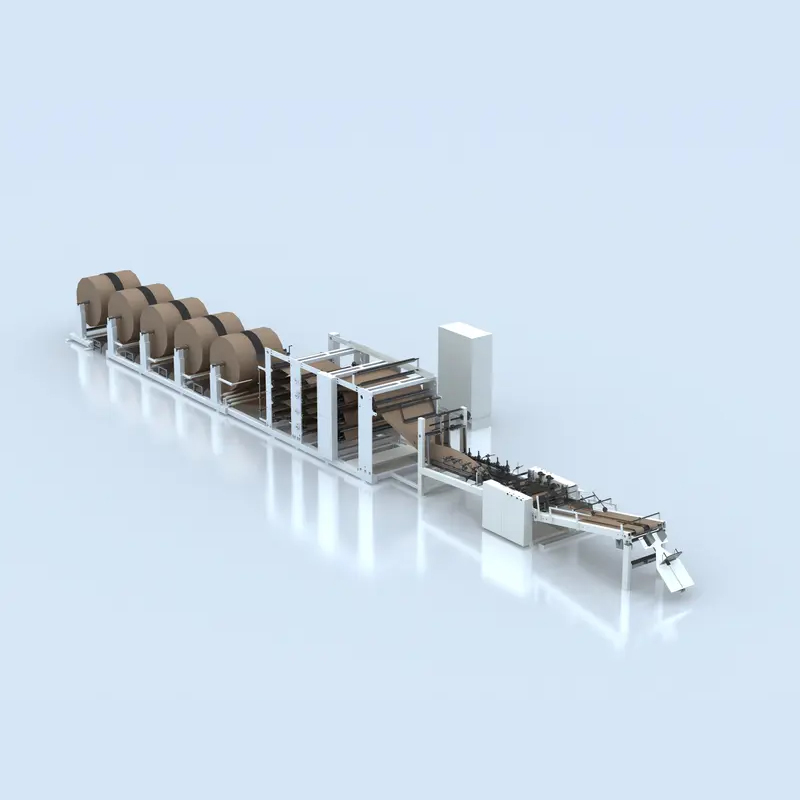

The machine group is equipped with 5 groups of paper roll holders, and the paper reel adopts air swelling shaft, which is convenient to operate and accurate positioning. Each paper holder is equipped with an axial adjustment device to adjust the paper roll to the correct position.
Standard brake belt to control paper tension (magnetic powder brake control device can be added); Put the spare paper roll in the empty holder, and use adhesive tape to glue it with the paper roll that is about to run out, to realize fast paper change.
The first paper roll holder is equipped with a guiding control device to locate the position of the paper tape.
Suitable for producing bags for powder and particles, such as cement, mortar and chemicals.
Able to produce A-shape cut paper tube.
The gram weight of paper material need to be between 70-100 g/m2.
Able to produce paper tubes made from 2-4 layers of paper or 2-3 layers of paper and 1 layer of PP or PE.
The core mechanisms are controlled by servo system. Easy to change the parameter.
The paper tubes can be used on the bottomer machine to produce paper bags.

Rectification Mechanism

Keep the paper tape along the scheduled running path to ensure the accurate operation of the after process and stabilize product quality, thereby improving efficiency and saving materials.
Adopt a four-layer structure, each layer is equipped with two parallel rollers, the rollers can be driven by servo motors according to a certain angle to move left and right, and equipped with sensors to detect the edge of the paper tape to control the position of the roller and then correct the position of the paper tape.
Guide the operation of each layer of paper tape, correct the lateral deviation, and provide convenient operation.

Horizontal Glue Doting Mechanism

At both ends of the piercing line, the multi-layer paper tape is glued into a layer of integral paper tape, so that the subsequent machine can open the mouth of the paper bag correctly.
The horizontal step glue dispensing mechanism is composed of a dispensing body, glue roller, and glue homogenizing roller.
Equipped with a circular arc dispensing board and adjustable rubber heads to adapt to paper tube dispensing of different steps.
The amount of glue can be precisely adjusted by the spacing between the rollers and the dispensing body.

FAQ

Q1: What is the maximum production speed of this machine? A: The machine features a maximum design speed of up to 150 tubes per minute.

Q2: How many layers of paper can the machine handle? A: It can process 2-4 layers of paper, or 2-3 layers of paper combined with 1 layer of PP or PE film.

Q3: What types of products are suitable for bags made by this machine? A: These paper tubes are ideal for producing bags used for powders and particles, such as cement, mortar, and various chemicals.

Q4: What is the required weight for the paper material? A: The gram weight of the paper material should ideally be between 70 and 100 g/m2.

Q5: How is the paper tension controlled during operation? A: The machine uses a standard brake belt to control tension, and a magnetic powder brake control device can be added as an option.

Q6: Is it easy to change production parameters? A: Yes, the core mechanisms are controlled by a servo system, making it simple and efficient to adjust parameters.
