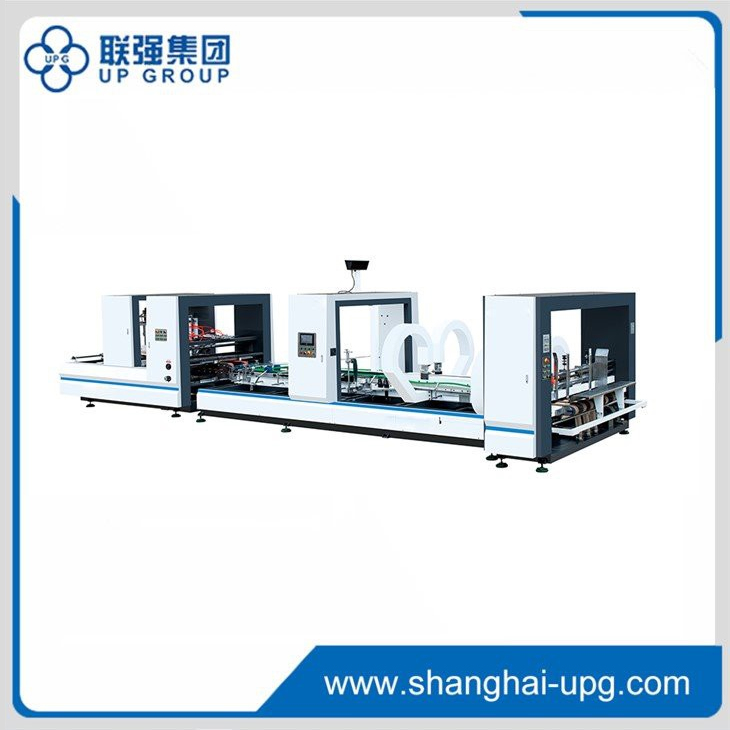

Machine Photo
Specification
| Model |
LQHX-2600S |
LQHX-2800S |
LQHX-3300S |
| Total Power |
16KW |
16KW |
16KW |
| Machine Width |
3.5M |
3.8M |
4.2M |
| Machine Rated Current |
16A |
16A |
16A |
| Max. Carton Length |
650mm |
800mm |
900mm |
| Min. Carton Length |
180mm |
180mm |
180mm |
| Max. Carton Width |
600mm |
600mm |
700mm |
| Min. Carton Width |
180mm |
180mm |
180mm |
| Machine Length |
13M |
13M |
14.5M |
| Machine Weight |
8T |
9T |
10T |
| Gluing Speed |
130m/min |
130m/min |
130m/min |
Machine Description
The biggest feature of this machine is full computer control, easy operation, stable quality, speed can achieve economic benefits, greatly save manpower.
- Order changing can be set within 3-5 minutes, can be mass production (with order memory function).
- Suitable for three layer, five layer, single piece of board. A. B. C and AB corrugated board stitching.
- Side flapping device can make the paper feeding neat and smooth.
- It can automatically complete paper folding, rectifying, stitching box, pasting box, counting and stacking output work.
- Adopt paper correction device, solve the secondary compensation and correction.
Why Choose Us?
- We are a trusted factory that produces high-quality Automatic Folder Gluer products to meet our clients' needs.
- We serve with industry and strive to make our enterprise stronger and bigger continuously to provide better quality Automatic High Speed Folder Gluer.
- We have years of experience in manufacturing and supplying Automatic Folder Gluer products to clients worldwide.
- We provide Automatic High Speed Folder Gluer processing business, and we look forward to cooperating with domestic and global partners.
- As a leading factory, we are committed to producing Automatic Folder Gluer products with exceptional quality and affordability.
- Looking to the future, our pace is always firm, because we know that only by constantly advancing with the times can we lead to a more brilliant future!
- Our factory is a trusted manufacturer and supplier of Automatic Folder Gluer products, offering unmatched quality and services.
- We know that a good corporate culture is the internal source of sustainable development of enterprises.
- Our factory is dedicated to delivering Automatic Folder Gluer products and services that exceed our clients' expectations.
- Through continuous operation and adjustment, we have developed our innovation capability and formed a technological innovation system.

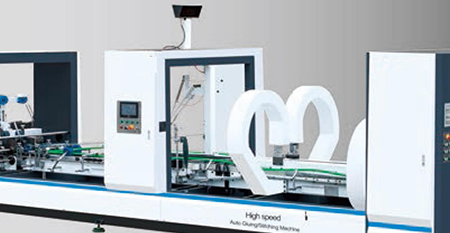

Automatic folding device
Automatic folding device adopts full computer control and automatically adjusts the folding position according to the cardboard size.

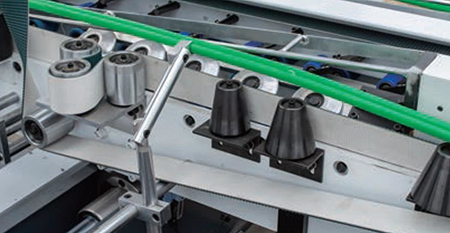

Secondary creasing unit
The second strengthen cardboard creasing line to make the folding position more accurate, the paper does not break, the creasing line is beautiful.

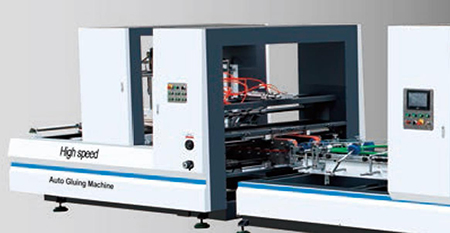

Digital paper delivery device
Full computer control, automatic regulation, one key adjustment.
FAQ
1. What is the maximum gluing speed of the machine?
The machine offers a high-speed performance of 130 meters per minute across all standard models (LQHX-2600S, 2800S, and 3300S).
2. How long does it take to change an order?
Thanks to the full computer control and order memory function, order changes can be completed within 3 to 5 minutes.
3. What types of corrugated board can this machine process?
It is suitable for three-layer, five-layer, and single-piece boards, including A, B, C, and AB corrugated board stitching.
4. Does the machine feature automatic folding and stitching?
Yes, it can automatically complete paper folding, rectifying, stitching, pasting, counting, and stacking output work.
5. How does the secondary creasing unit benefit the final product?
The secondary creasing unit strengthens the creasing line to ensure folding is more accurate and prevents paper breakage, resulting in a beautiful finish.
6. Is the operation difficult for new users?
No, the machine features full digital computer control with one-key adjustment, making it easy to operate while maintaining stable quality.
