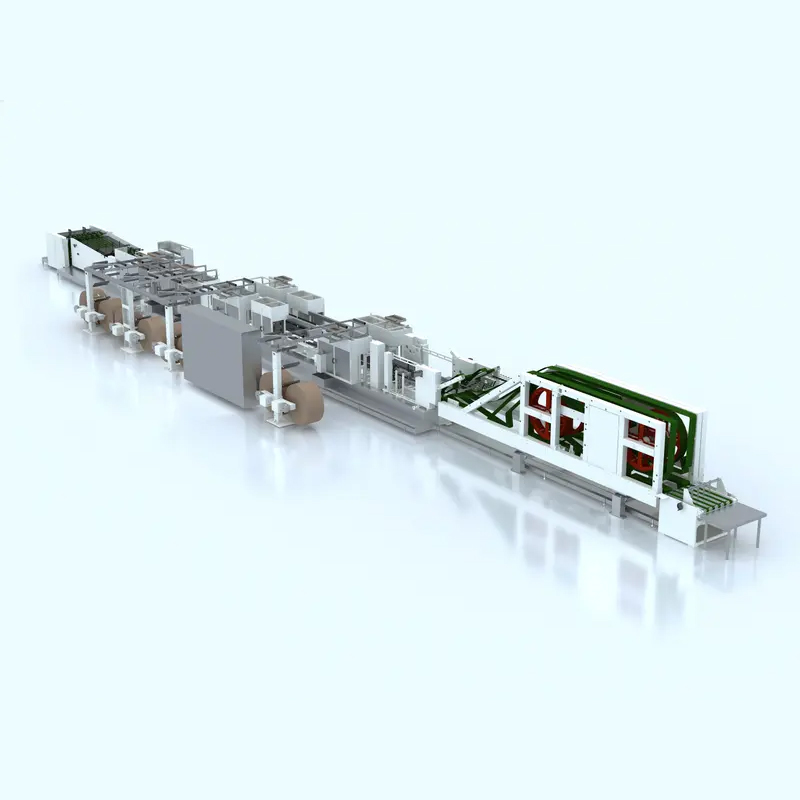

China LQ GU8320 High Speed Bottomer Machine Manufacturers, Suppliers

● Full servo control of core work station. ● Digital operation, convenient specification replacement. ● Can handle 2-4 layers of paper. ● Able to produce one side closed, one side open paper bag. ● With internal reinforcement and external reinforcement mechanism(optional)y. ● Able to produce single layer valve paper bag, cylindrical externalvalve paper bag, big bottom and small valve paper bag, externavalve bag with thumb gap, and super sonic valve bag.

Send Inquiry

Product Description

Technological Process

Has planetary system and vacuum system.
Equipped with double-tube-check and congestion-check mechanism.

Technical Parameters

Machine Type	LQ GU8320
Tube length (mm)	470-1100
Double end glued bag length (mm)	330-920
Bag width (mm)	330-600
Bag bottom width (mm)	90-200
Bag center distance (mm)	240-800
Design maximum speed (bags/min)	230
Thickness of rubber plate (mm)	3.94
Size of the machine (High configuration)(m)	32.63x5.1x2.52
Power (High configuration)	86KW
Width of valve and reinforcement paper roll (mm)	80-420
Maximum diameter of valve and reinforcement paper roll (mm)	1000

Arrangement Mechanism

Synchronous belt stopper positioning ensures consistent spacing between paper bag barrels.
Double bag removal function; Pierce the exhaust hole at the valve port of the paper bag.

Opening & Horn Flattening Mechanism

Has Oblique indentation mechanism and cutting mechanism controlled by independent servo motors, which can be adjusted by the computer.
The vacuum opening mechanism is used to open the paper tubes, to enable the horn to insert into the tube.
The horn mechanism is used to open the paper tubes and make the bottoms into diamond shape.
The flattening mechanism is used to put pressure on the diamond-shape bottom, to help form the diamond structure.

Frequently Asked Questions

Q1: What is the maximum production speed of the LQ GU8320 machine? A: The machine is designed with a maximum speed of up to 230 bags per minute.

Q2: How does the machine ensure consistent spacing between paper bags? A: It utilizes synchronous belt stopper positioning to ensure consistent and precise spacing between paper bag barrels.

Q3: What kind of bottom shapes can this machine produce? A: The horn mechanism is specifically designed to open the paper tubes and form the bottoms into a precise diamond shape.

Q4: Does the machine include any automated check mechanisms? A: Yes, it is equipped with both double-tube-check and congestion-check mechanisms to maintain smooth technological processes.

Q5: What control system is used for the cutting and indentation mechanisms? A: These mechanisms are controlled by independent servo motors, which can be easily adjusted via the computer system.

Q6: What are the bag width and tube length capacities? A: The machine supports a tube length range of 470-1100 mm and a bag width range of 330-600 mm.
