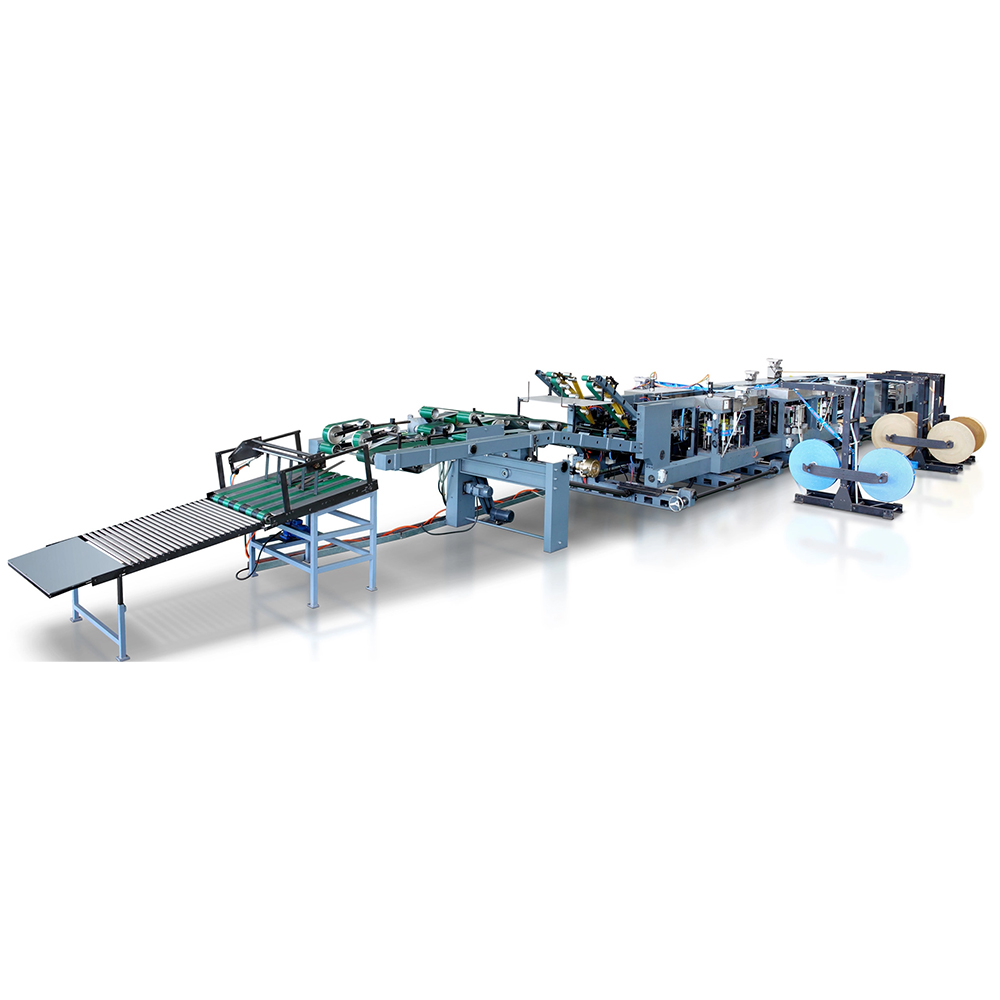

| Machine Type | LQ HD8916 |
| Bag length (mm) | 370-770 |
| Bag width (mm) | 350-550 |
| Bag bottom width (mm) | 90-160 |
| Bag center distance (mm) | 280-620 |
| Max design speed | 150strip/min 150tubes/min |
Rotary roller feeding method. The small roller rotates around the large roller, and at the same time rotate reversely to absorb paper tube. The large roller can absorb 8 paper tubes for rotating one round. Planetary rotation vacuum suction feeding mechanism has the simplest path, and is reliable and stable.
Equipped with a positioning device to ensure accuracy. Includes oblique indentation device adjustable without stopping. Features puncture exhaust hole function for cement paper bags and straight cutting knife for paste-bottom processes.
Equipped with vacuum suction mechanism to open the mouth of paper tubes. The horn mechanism creates a symmetrical diamond shape, while the flattening mechanism assists in forming and compacting the bag bottom structure.
Cuts valve paper tape and pastes it on bags. Supports external or built-in valves with single layer or paper film misalignment. Includes a differential mechanism for non-stop adjustment and screen-based parameter setting.
Cuts, folds, and glues paper to make a tube before pasting. Can produce built-in, external, barrel-shaped, and thumb-gap valve ports. Features non-stop differential adjustment.
Directs reinforcement paper through traction, cutting, and glue units. Controlled by an electronic system that cancels pinching if no bag is detected to avoid glue waste. Features non-stop differential adjustment.
Assists bottom forming with an indentation device. Uses a large glue wheel with flexible rubber plate shapes. Includes an auto-separation system to prevent gluing if no tube is detected.
Composed of inner and outer core plates. Guides the folding to form a square bottom and uses a compaction wheel for firm pasting. Core boards are adjustable for different bottom sizes.
Flips the bag bottom at a 90-degree angle using a guiding bar to fit the bag body perfectly for compaction and conveying.
Stacks bags through a slow-speed belt for better compaction. Features a systematic counting device and vacuum adsorption for stacking separation.
Piles bags in a stacking area and transports them to the collection platform once the preinstall count is reached. Handles 2-4 layers of paper and produces various bag types including thumb gap and sonic valve bags.
