🔹 Feeder System
High speed feeder with adjustable speed for paper sheets.
Direct lift separation suction and linear paper sheet feeding.
Advanced nozzle with four suction and four blowing points on both sides.
Vacuum feeding with aluminum alloy plate feeder table.
Feed board equipped with wheel brush press bar.
Adjustable inclination of paper sheets at the feeder head.
Lift distance adjustable (0.8~2mm) based on sheet thickness.
Manual air volume adjustment based on size, weight, and printing speed.
Precision suction nozzle adjustment via steel wire shaft handle.
📍 Sheet Positioning
Centering pendulum conjugate cam paper feeding mechanism.
Down-swing compound front lays for extended positioning time.
Integrated sensors for checking late or skewed paper sheets.
Precise paper sheet size control.
Front lay manually adjustable in both vertical and longitudinal directions.
Roller side lay with adjustable drawing force and timing.
Interlocking safety mechanism for in-feeder and front lay.
Includes pressing paper plate, bar, and wheel components.
🖨️ Printing Unit
Stainless coatings on the impression cylinder for durability.
Flat sheet transfer drum ensures smear-free sheet transfer.
All cylinders constructed from anti-friction cast iron.
Precision closing tooth at the high spot.
Independently changeable gripper tips and pads.
Cylinders mounted in specialized cylindrical roller bearings.
Blankets with aluminum clippers for rapid plate mounting.
Blanket tensioning system from the middle.
We are committed to meeting the unique requirements of every customer through tailored solutions.
Our quality policy: "Quality First, Customer First, Keep Improving, and Diligently Open up".
We prioritize long-term value, ensuring customers get the best possible return on investment.
Professional teams covering R&D, production, construction, and comprehensive after-sales service.
Our machines are designed to be both highly functional and aesthetically pleasing.

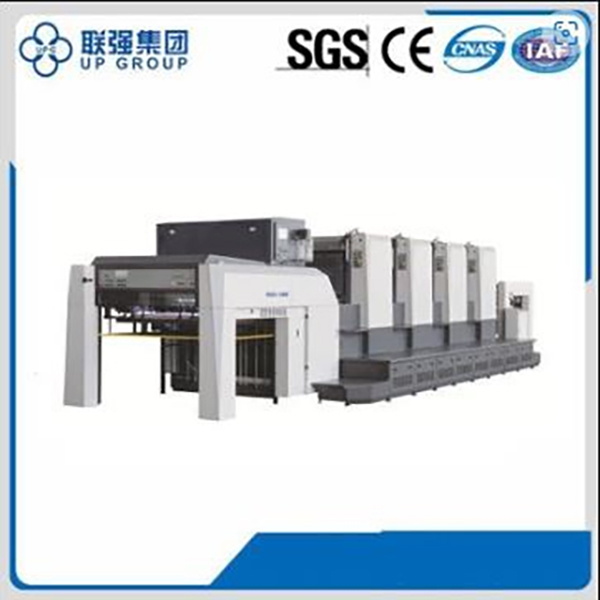

Proven track record in the Large Format Sheet Fed Offset Printing Press industry with global praise.
Corrugated board printing machines built to the highest standards of durability.
Strong technical force with modern management and first-class production equipment.
Frequently Asked Questions
Q1: What is the maximum printing speed of this machine?
The machine can reach a maximum mechanical speed of 10,000 sheets per hour.
Q2: What thickness of paper can the press handle?
This equipment is designed to handle paper thickness ranging from 0.1mm to 0.6mm.
Q3: How does the feeder system handle different paper sizes?
The high-speed feeder allows for manual air volume and speed adjustments based on the specific size and weight of the sheets.
Q4: Are the printing cylinders durable?
Yes, all cylinders are made of anti-friction cast iron, and the impression cylinder features stainless coatings for enhanced longevity.
Q5: Does the machine include features to prevent paper misalignment?
Yes, it includes sensors at the front lay to check for late or skewed paper sheets, ensuring precise positioning.
Q6: Is it easy to mount plates and blankets on this unit?
The unit uses blankets with aluminum clippers specifically designed for fast and efficient plate mounting.
