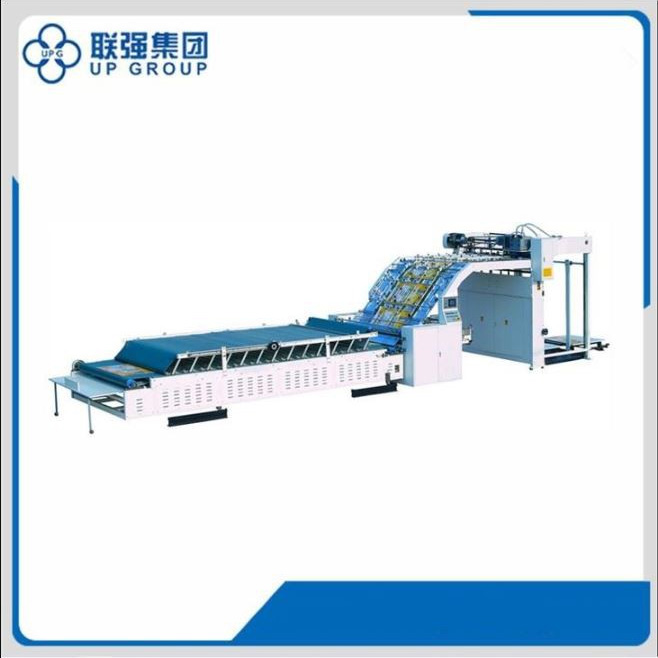

The feeding unit is equipped with a pre-piling device to increase the production efficiency.
✔
High strength feeder uses 4 lifting suckers and 4 forwarding suckers to ensure smooth running with no missing of sheet even at high speed.
✔
The electric control system with touch screen and PLC program monitors automatically the working condition and facilitates trouble shooting. The design conforms to CE standards.
✔
Gluing unit uses high precise coating roller and specially designed metering roller to enhance the evenness of gluing. The unique gluing roller features a glue stopping device and automatic glue level control.
✔
Machine body processed by CNC lathe in one process ensures precise positioning. Toothed belts guarantee smooth running with low noise.
✔
Corrugated board feeding unit adopts a powerful servo motor control system for high sensitivity and fast speed. The suction unit uses a unique dust collection filter box.
✔
Roller pressure is adjusted synchronously by one hand wheel, making it easy to operate and ensuring the flute remains undamaged.
✔
Suitable for A, B, C, E, F flute corrugated sheets and 150-450 GSM top sheets. It can handle 3 or 5 ply corrugated board lamination up to 8mm thickness.
✦
Our Flute Laminator products are known for exceptional performance, durability, and value worldwide.
✦
We pursue internationalization and standardized management with high-end product quality and professional service.
✦
Our QC Crew guarantees strict inspection to provide the greatest assistance for your Automatic Flute Laminator needs.
✦
Years of development history built on honest management and customer trust.
✦
Commitment to quality, efficiency, and premier service as a global provider.
❓ Frequently Asked Questions
Q1: What types of corrugated flutes can this machine handle?
The machine is compatible with A, B, C, D, E, and F flute corrugated sheets, supporting both 3-ply and 5-ply boards.
Q2: What is the maximum production speed?
The Automatic Flute Laminator reaches a maximum mechanical speed of 153 meters per minute.
Q3: How does the machine ensure precise gluing?
It utilizes high-precision coating rollers combined with a metering roller and an automatic glue level control system to ensure even distribution and prevent overflow.
Q4: What are the requirements for the top paper sheet?
The top sheet should ideally be between 150 to 450 GSM for optimal lamination results.
Q5: Is the machine easy to adjust for different paper sizes?
Yes, the machine features a synchronous adjustment system via a single hand wheel and a PLC touch screen interface for intuitive control and easy operation.
Q6: Does the machine prevent double-sheet feeding?
Yes, the feeder is equipped with 4 lifting and 4 forwarding suckers, and the corrugated unit uses a servo motor with a specialized suction box to ensure smooth, single-sheet feeding.
